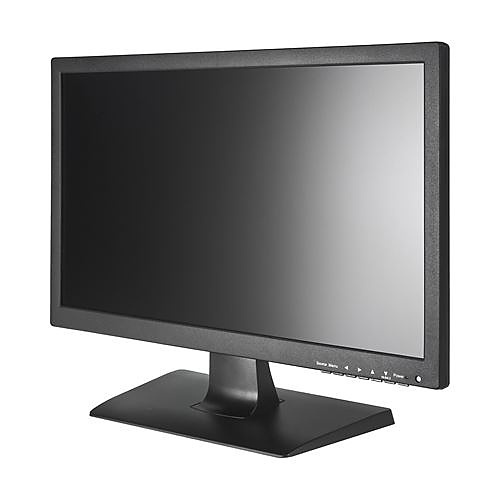

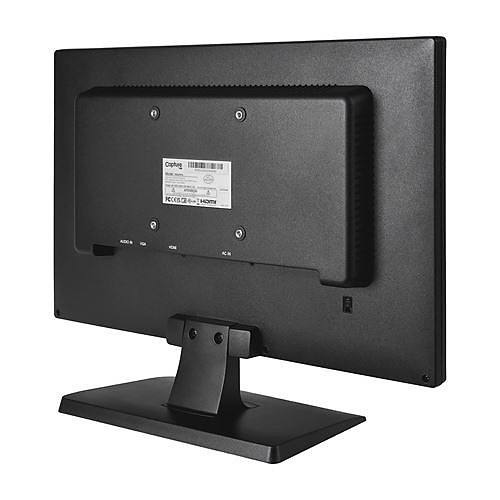

Wbox LED 18.5" HD 24/7 Landscape Desk Digital Display

Brand: W Box Technologies
ADI #:WBXMP19 Model #: WBXMP19  Name: WBOX LED 18.5" HD 24/7 LANDSCAPE DESK DIGITAL DISPLAY
  • 18.5" Diagonal Viewing Size
  • 24/7 Operation
  • 1366 x 768P HD Resolution
W Box Pro-Grade WBXMP19 47 cm (18.5") WXGA LED LCD Monitor - 16:9 - 1366 x 768 - 16.7 Million Colours - )250 cd/m² - 5 ms GTG - 60 Hz Refresh Rate - 2 Speaker(s) - HDMI - VGA

Product Overview

General Information

Main Features
  • 18.5" Diagonal Viewing Size
  • 24/7 Operation
  • 1366 x 768P HD Resolution

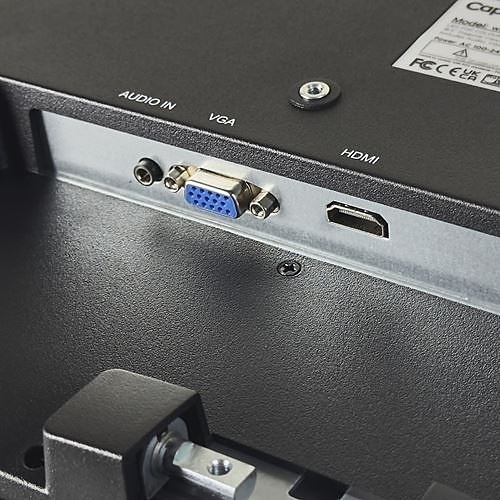

  • HDMI, VGA, Audio Inputs
  • Includes VGA, Audio & Dual Power Cables (EU, UK)
  • 2 Built-in Stereo Speakers
  • 75mm x 75mm VESA Mounting Pattern
  • Warranty 3 years
Marketing Information

    This budget 24/7 operation widescreen LED 18,5" HD colour monitor offers HDMI, VGA, and Audio in. This monitor combines extremely high contrast and low power consumption to be the perfect deploy-anywhere option.

Information
Category : Products, Surveillance Monitors, Video, Video Monitors
UPC Code : 811914029816

Specifications

General Information
ADI Part Number
WBXMP19
Product Line
Pro-Grade
Product Name
HD Pro-Grade LED Colour Monitor
Technical Information
Aspect Ratio
16:9
Backlight Technology
LED
Number of Screens
1
Pixel Pitch
0.30 mm
Response Time
5 ms GTG
Screen Mode
WXGA
Screen Size Class
482.60 mm
Viewable Screen Size
47 cm (18.5")
Video
Brightness
250 cd/m²
Colour Supported
16.7 Million Colours
Dynamic Contrast Ratio
1,000,000:1
Maximum Resolution
1366 x 768
Native Contrast Ratio
1,000:1
Standard Refresh Rate
60 Hz
Audio
Number of Speakers
2
Speakers
Yes
Interfaces/Ports
HDMI
Yes
Number of HDMI Inputs
1
VGA
Yes
Built-in Devices
Built-in Devices
Speaker
Power Description
Operating Power Consumption
18 W
Physical Characteristics
Depth
46 mm
Depth with Stand
149 mm
Height
271 mm
Height with Stand
332.20 mm
VESA Mount Compatible
Yes
Weight with Stand (Approximate)
2.60 kg
Width
441.2 mm
Width with Stand
441.20 mm
Miscellaneous
Environmental Certification
REACH, RoHS, WEEE
Environmentally Friendly
Yes
Package Contents
  • HD Pro-Grade LED Colour Monitor
  • Dual Power cable (EU,UK)
  • VGA cable
  • Audio cable
  • Hinge cover Screws
  • Base of stand
  • Stand support
  • User manuals
Warranty
Limited Warranty
3 Year
