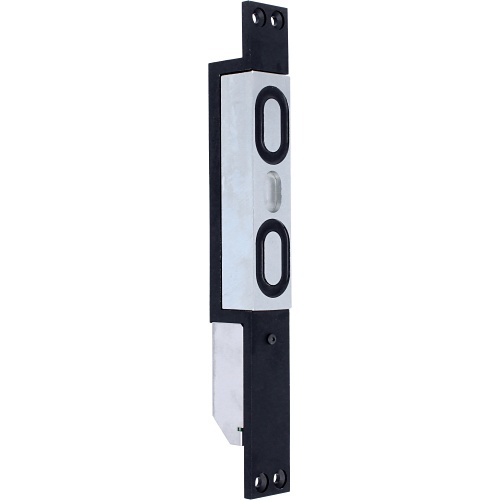

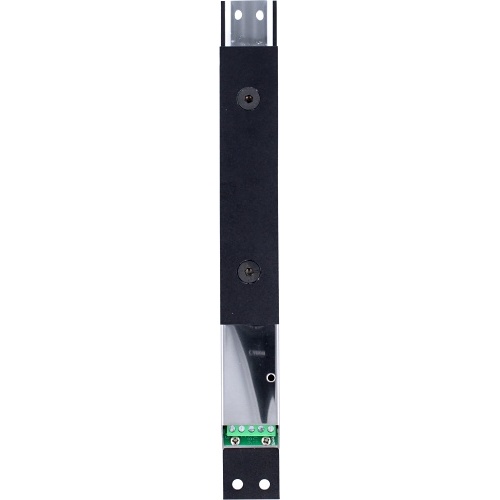

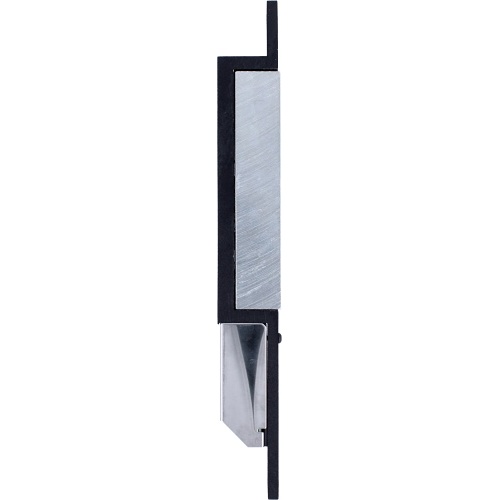

CDVI SHL-1200 Shearlock Shearlock Ltch Mon 12-48vd
Brand: CDVI
ADI #:SHL-1200
Model #: SHL1200/P1200SHL
Name: CDVI SHL-1200 Shearlock Shearlock Ltch Mon 12-48vd
- Robust shearlock
- Fail safe
- Monitored (lock status)
Product Overview
General Information
The SHL1200 is a traditional shearlock which is ideal for single action doors which always rest at the same position and have good quality door closers fitted.
The construction of the SHL1200 makes it suitable for aluminium and wooden doors - being very robust in construction and performance, the SHL1200 provides a high level of security with a holding force of 1200kg.
The standard mounting method is flush, which enhances the security of the unit and does not alter the aesthetics of the door and it's surroundings. An optional stainless steel surface housing is available to increase the flexibility of the unit.
Operating at 12 or 24Vdc, the shearlock operates with an intial in-rush current to ensure the armature is pulled up and located in it's locked position. A minimum 2A power supply is required to power the SHL1200 at 12Vdc, which allows for the in-rush current of 1.8A, this settles after locking to 630mA.
Monitoring is standard, a changeover relay signals that power is applied and the lock is bonded.
A varistor is built in to the electronics, which eliminates back EMF and protects sensitive controlling devices such as keypads and access control units.
Main Features
- Robust shearlock
- Fail safe
- Monitored (lock status)
Information
Category : Products, Magnetic Locks, Access Control, Locking Devices
Specifications
General Information
ADI Part Number
SHL-1200
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
SHL-1200
Product Model
SHL1200
Product Name
SHL1200 Mortice Shearlock Electromagnetic Lock
Product Type
Magnetic Lock
Technical Information
Armature Plate Depth
34 mm
Armature Plate Depth (mm)
34
Armature Plate Width
30 mm
Armature Plate Width (mm)
30
Door Supported
Single Door
Holding Force (g)
1200000
Physical Characteristics
Application/Usage
Door
Form Factor
Surface Mount
Lock Depth
34.30 mm
Lock Depth (mm)
34.3
Lock Length
267 mm
Lock Length (mm)
267
Lock Width
30 mm
Lock Width (mm)
30
Power Description
Input Current
250 mA, 500 mA
Input Current (A)
0.25, 0.5
Input Voltage
12 V DC, 24 V DC
Product Information
Holding Force
1200 kg
Warranty
Limited Warranty
5 Year
Miscellaneous
Environmental Certification
RoHS, WEEE
Environmentally Friendly
Yes
Features
Fail Safe, Monitored
