CDVI DX200 Deadbolt Solenoid Bolt 12v DC Fail Saf
Brand: CDVI
ADI #:DX200
Model #: DX200
Name: DEADBOLT SOLENOID BOLT 12V DC FAIL SAF
- Fail safe
- Monitored lock status
- Relock timer
Product Overview
General Information
Main Features
- Fail safe
- Monitored lock status
- Relock timer
- Rolling bolt (prevents cutting)
- Economical
Marketing Information
- Fail safe
- Easy installation
- Free voltage
- Door status
- Lock status
- Delay timer
- Retry circuit
- 14mm rotating dead bolt

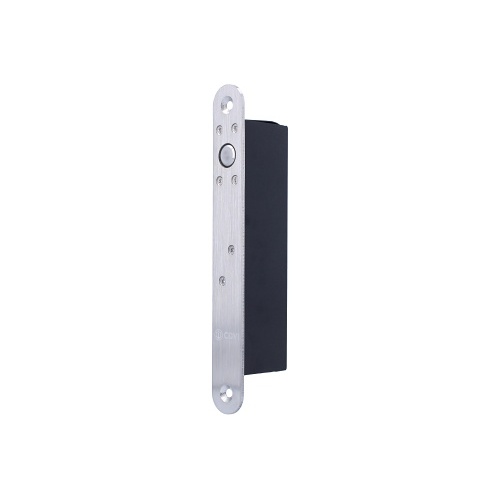

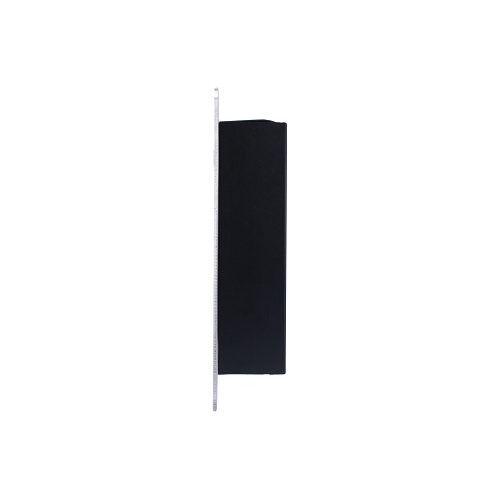

The DX200 solenoid bolt from CDVI is an entry level, fail safe locking device. With a stainless steel faceplate, retry circuit and monitoring, the DX200 is excellent value for securing a door.
The DX200 is manufactured in stainless steel, with a keeper plate of equal dimension to ensure symmetry.

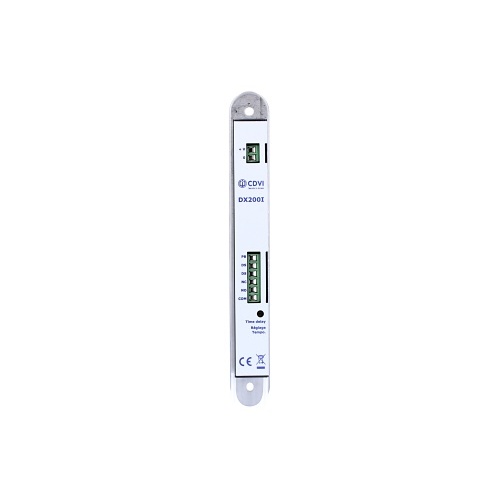

A retry circuit activates if door is not correctly aligned, and monitoring of the door position and lock position is signalled via outputs for full status of the security of the door.
The unit operates with free voltage between 12 and 24Vdc.
A stainless steel surface housing is available for convenience if required - the housing is supplied in two parts, one for the lock and one for the keep plate.
Information
Category :
UPC Code : 3662211006140
Specifications
General Information
ADI Part Number
DX200
Product Name
Fail-Safe Solenoid Bolt
Physical Characteristics
Material
Stainless Steel
Miscellaneous
Application/Usage
Door
Environmental Certification
RoHS, WEEE
Environmentally Friendly
Yes
Warranty
Limited Warranty
5 Year
