General Information

ADI Part Number

02329-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02329-001

Product Model

P3267-LV

Product Name

AXIS P3267-LV

Product Series

P32

Product Type

Fixed dome cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Frame Rate

30 fps

Minimum Focal Length

3mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

3x

Video Formats

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

CE Marking

Yes

Ingress Protection Rating

IP52

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

0°C

Exposure

Minimum Illumination

0 lux

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3-8mm

Lens Included

Yes

Maximum Focal Length

8 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Vandal Resistant

Form Factor

Dome

Product Information

Mount Type

Bracket Mount, Ceiling Mount, Junction Box Mount, Wall Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Country of Origin

MX

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10

Features

Audio Detection, Built-in Infrared Illuminator, Built-in IR LED, Day/Night, Motion Detection, Tampering Alarm, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

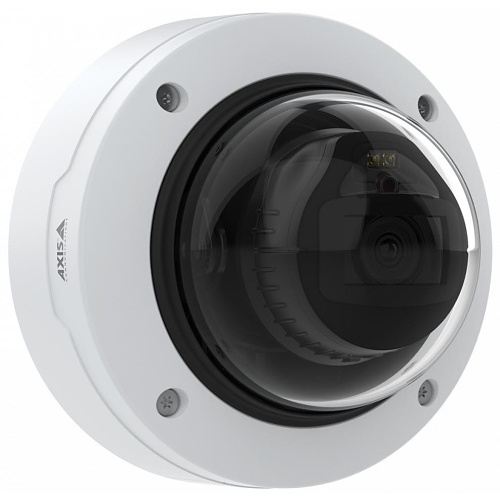

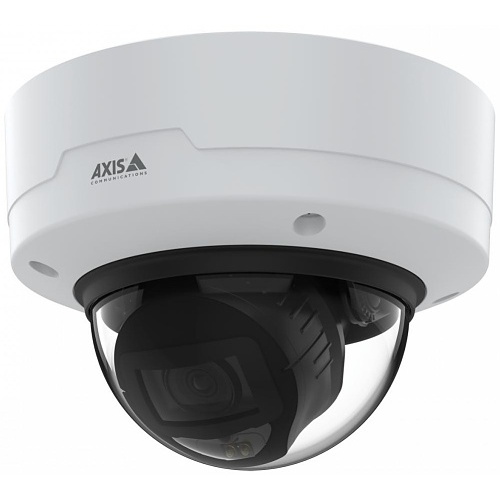

AXIS P3267-LV P32 Series, 5MP Zipstream IP Dome Camera, 3-8mm Motorized Lens, IR 40M, IP52, White
