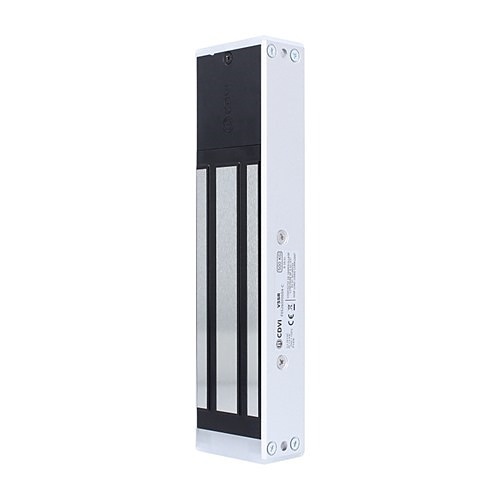

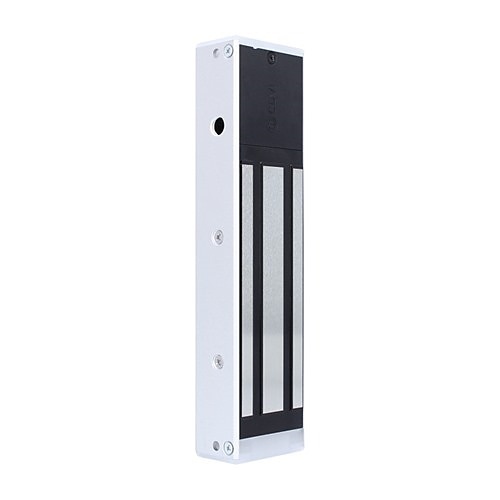

CDVI V5SR V5 Series 500kg Surface Mount Magnetic Lock, Monitored, Fire Rated, LED, 12/24VDC
Brand:
CDVI
ADI #:V5SR
Model #: V5SR
Name: CDVI V5SR V5 Series 500kg Surface Mount Magnetic Lock, Monitored, Fire Rated, LED, 12/24VDC
Surface mount electro-magnetic lock
Up to 500kg holding force for robust security
12 or 24Vdc operation
Product Overview
General Information
Main Features
Surface mount electro-magnetic lock
Up to 500kg holding force for robust security
12 or 24Vdc operation
Fire rated for 30 mins under EN1634-1 and EN1634-2
Live status monitoring
Patented locking technology
Visual LED indication
Z&L bracket available - see 500-ZL
Information
Category : Access Control, Locking Devices, Products, Magnetic Locks
EAN Code : 3662211010253
Specifications
General Information
ADI Part Number
V5SR
Brand Name
CDVI
Manufacturer
CDVI Group
Manufacturer Part Number
V5SR
Packaged Quantity
1
Product Model
V5SR
Product Name
V5SR Magnetic Lock
Product Series
V SERIES
Product Type
Magnetic Lock
Technical Information
Armature Plate Depth
12 mm
Armature Plate Depth (mm)
12
Armature Plate Width
60 mm
Armature Plate Width (mm)
60
Door Supported
Single Door
Holding Force (g)
500000
Physical Characteristics
Application/Usage
Access Control System, College, Commercial, Door, Industrial, Public Building, School, Wooden Door
Colour
Silver
Form Factor
Surface Mount
Lock Depth
40 mm
Lock Height
266 mm
Lock Height (mm)
41
Lock Length
273 mm
Lock Length (mm)
273
Lock Width
66 mm
Lock Width (mm)
67
Weight (Approximate)
2.86 kg
Power Description
Input Current
275 mA, 550 mA
Input Current (A)
0.275, 0.55
Input Voltage
24V DC
Product Information
Finishing
Aluminum
Holding Force
500 kg
Miscellaneous
Environmentally Friendly
Yes
Features
Environmentally-friendly with lower energy consumption, Live status monitoring, Patented locking technology, Surface mount electro-magnetic lock

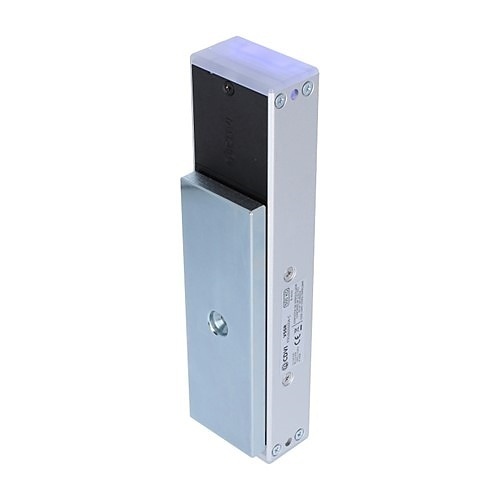

Package Contents
V5SR Magnetic Lock
armature plate
