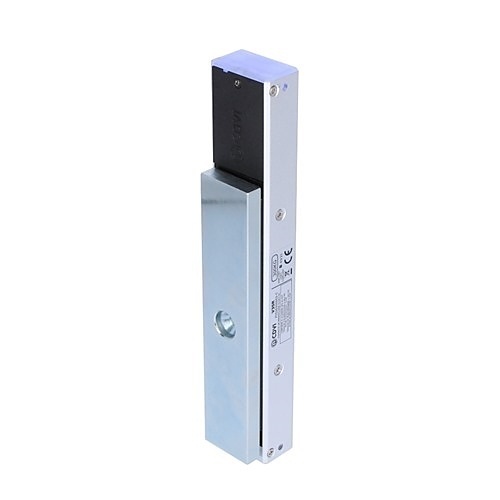

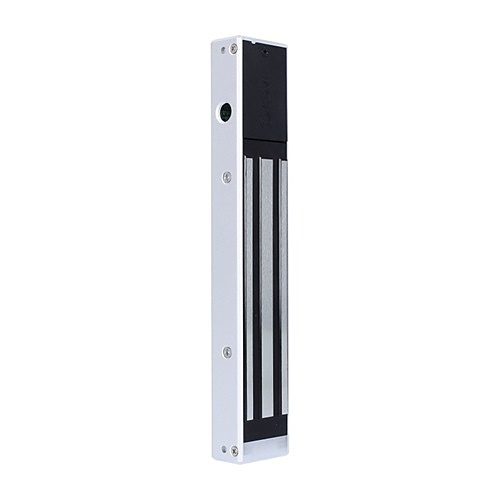

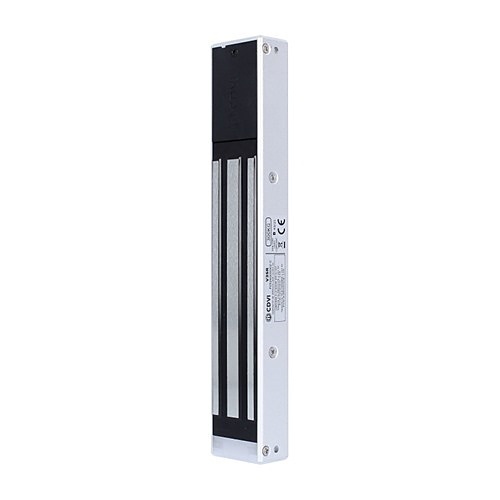

CDVI V3SR Magnet Mini 12/24vdc Monitored

Brand: CDVI
ADI #:V3SR Model #: V3SR  Name: CDVI V3SR Magnet Mini 12/24vdc Monitored
  • Surface mount electro-magnetic lock
  • Up to 300kg holding force for robust security
  • Low consumption with only 290mA @ 12Vdc power supply

Physical Characteristics

Application/Usage
Access Control System, College, Commercial, Door, Industrial, Public Building, School, Wooden Door
Colour
Silver
Form Factor
Surface Mount
Lock Depth
28 mm
Lock Depth (mm)
28
Lock Height
254 mm
Lock Length
245 mm
Lock Length (mm)
245
Lock Width
45 mm
Lock Width (mm)
45
Weight (Approximate)
1.088 kg

Power Description

Input Current
275 mA, 550 mA
Input Current (A)
0.275, 0.55
Input Voltage
24V DC

Product Information

Finishing
Aluminum
Holding Force
300 kg

Miscellaneous

Environmentally Friendly
Yes
Features
Environmentally-friendly with lower energy consumption, Live status monitoring, Patented locking technology, Surface mount electro-magnetic lock
