General Information

ADI Part Number

TI-PG1284I

Brand Name

TRENDnet

Manufacturer

TRENDnet

Manufacturer Part Number

TI-PG1284I

Product Line

Industrial

Product Model

TI-PG1284i

Product Name

12-port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch

Product Type

Ethernet Switch

weight

3.37 kg

Technical Information

Media Type Supported

Optical Fiber, Twisted Pair

Power Consumption

15W

Certifications

RoHS Compliant

Compliant

TAA Compliant

Yes

I/O Expansions

Expansion Slot Type

SFP

Number of SFP Slots

4

Number of SFP+ Slots

4

Number of Total Expansion Slots

4

Shared SFP Slot

No

Interfaces/Ports

Modular

Yes

Network (RJ-45)

Yes

Total Number of Network Ports

12

Uplink Port

No

Management & Protocols

Manageable

Yes

Media & Performance

Network Technology

1000Base-T, 1000Base-X

Network & Communication

Ethernet Technology

Gigabit Ethernet

Layer Supported

3

Networking Standards

IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Physical Characteristics

Depth

279.4 mm

Form Factor

Rail Mount

Height

177.8 mm

Material

Metal

Width

228.6 mm

Power Description

Input Voltage

48V DC, 57V DC

Plug/Connector Type

Terminal Block

PoE (RJ-45) Port

Yes

PoE Budget

240W

Power Source

Power Supply

Redundant Power Supply

Yes

Warranty

Limited Warranty

Lifetime Warranty

Miscellaneous

Environmental Certification

CE, Freefall (IEC 60068-2-32), Shock (IEC 60068-2-27), Vibration (IEC 60068-2-6)

Environmentally Friendly

Yes

Features

240W PoE power budget, 24Gbps switching capacity, 4 x SFP slots, 8 x Gigabit PoE ports, 802.1p/DSCP/Queue Scheduling (SPQ/WRR) QoS support, 802.1Q/Q-in-Q VLAN and IGMP Snooping/MLD/MVR support, Alarm output triggered by power failure, Bandwidth control per port, CLI (Console/Telnet/SSH), Web (HTTP/HTTPS), SNMP v1/2c/3 management, Dual inputs provide redundant power with overload current protection, Hardened IP30 rated metal housing, IEEE 802.1p QoS with queue scheduling support, Includes DIN-rail mounting bracket, Operating temperature range of -40 to 75 deg C (-40 to 167 deg F), PoE alive check restarts unresponsive PoE powered devices, Power supply sold separately (models: TI-S48048), Supports 1000Base-FX fiber SFP modules, Supports Ethernet Ring Protection Switching (ERPSv2), Supports LACP, STP/RSTP, VLAN and IGMP Snooping

Package Contents

TI-PG1284i
Quick Installation Guide
Removable terminal block
Console cable (RJ-45 to RS-232)

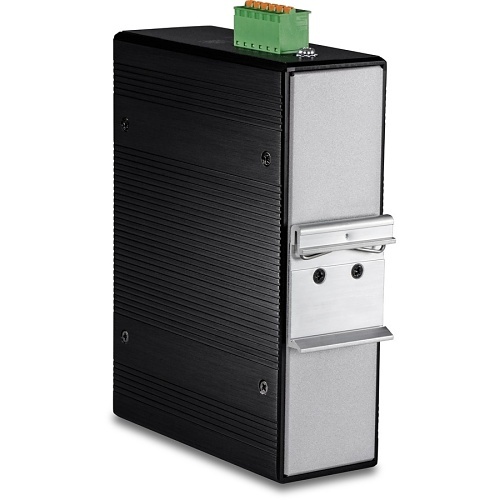

DIN-Rail mounting bracket

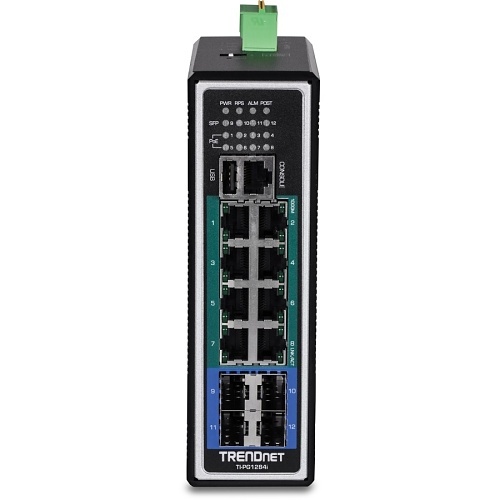

TRENDnet TI-PG1284i 12-Port Industrial Gigabit L2+ Managed PoE+ DIN-Rail Switch
