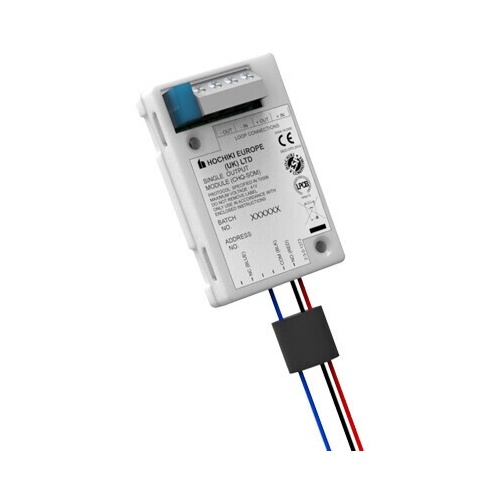

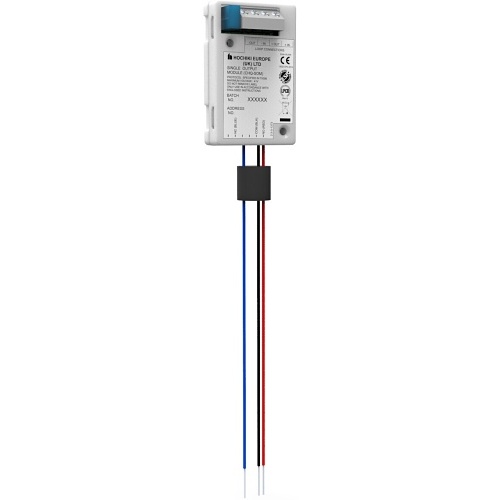

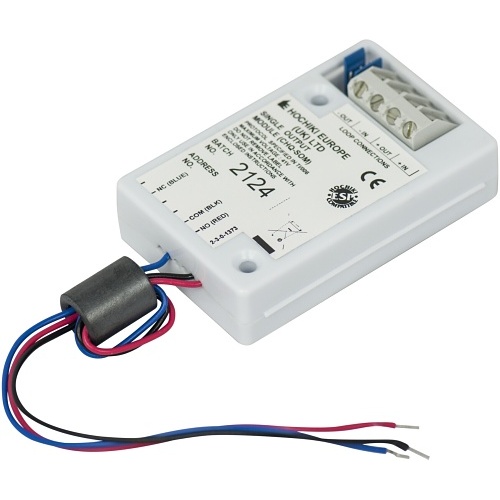

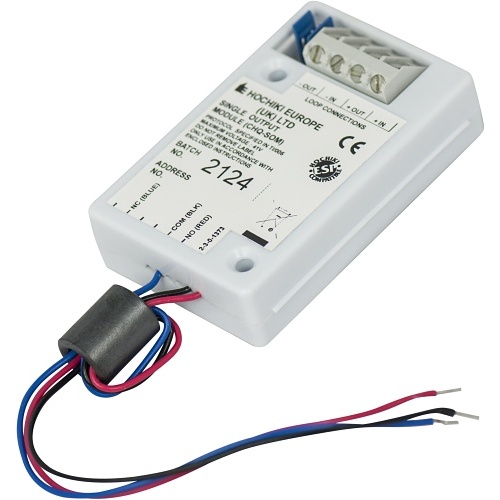

Analogue I/Face Det Single Output Module

Brand: Hochiki
ADI #:CHQ-SOM Model #: CHQ-SOM  Name: ANALOGUE I/FACE DET Single Output Module
  • Includes a single monitored output
  • Small design for simple provision of a monitored output onto an ESP loop
  • Flying leads for easy installation
Hochiki Addressable Relay Module - Impact Resistant - Polycarbonate - Ivory

Product Overview

General Information

Main Features
  • Includes a single monitored output
  • Small design for simple provision of a monitored output onto an ESP loop
  • Flying leads for easy installation
  • Addressed with TCH-B200 Hand Held Programmer
Marketing Information

    Single output module

    A single output module has been desinged to allow a single relay output to be connected to the ESP loop. The unit incorporates a volt-free relay contact that can be configured as either N/O or N/C, the relay contact is rated to 30 V dc (max), 1A (resistive load). The CHQ-SOM features three colour-coded flying leads, the unit also features a wiring terminal block for loop connection.

Information
Category : Addressable Interfaces, Addressable Systems, Fire & Gas Detection, Products
UPC Code :

Specifications

General Information
ADI Part Number
CHQ-SOM
Brand Name
Hochiki
Manufacturer
Hochiki America Corporation
Manufacturer Part Number
CHQ-SOM
Product Name
Addressable Relay Module*
Product Type
Addressable Relay Module
Physical Characteristics
Colour
Ivory
Depth
15 mm
Durability
Impact Resistant
Height
65 mm
Material
Polycarbonate
Weight (Approximate)
25 g
Width
42 mm
