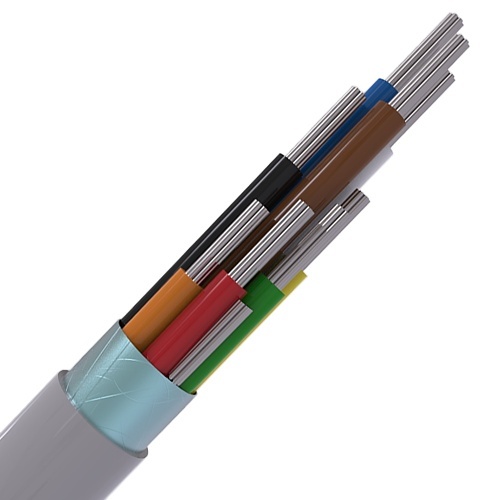

CQR CABS8 100M Type 2 LSF Belden Style 9540 Screened 8-Core Cable Reel, Grey

Brand: CQR
ADI #:CABS8/GY/LSF/100 Model #: CABS8/GY/LSF/100  Name: CQR CABS8 100M Type 2 LSF Belden Style 9540 Screened 8-Core Cable Reel, Grey
  • 8 Core
  • Screened
  • Typically used for security
CQR CABS8 100M Type 2 LSF Belden Style 9540 Screened 8 Core Cable Reel, Grey

Product Overview

General Information

Screened Copper Cable



CQR are the leading U.K. Manufacturer of cable for Intrusion detection, Access Control and Fire Retardant applications. All our cables are manufactured at our specialist factory in the U.K. We offer a range of cables to meet the latest BS4737-3.30:2015 standard including the latest Low Smoke Zero Halogen.



The majority of the cost of an Intruder Detection or Access Control system is in the installation rather than the equipment, therefore it is essential that the highest quality cable is used to ensure the integrity and longevity of the system.

Main Features
  • 8 Core
  • Screened
  • Typically used for security
  • 7 x 0.194mm Tinned Copper
  • Sheathed in Low Smoke & Fume
  • Manufactured to BS4737-3.30:2015 Type 2
  • Fully compliant with EN50575:2014 ? CPR 305/2011
  • Coloured rip cord for identification of BS4737-3.30:2015 type
  • 100 mtr drum
  • Meets Belden Style specifications 9538
Information
Category : Products, Wire & Cable, Multipair Cables, Security & Access Control Cables

Specifications

General Information

ADI Part Number
CABS8/GY/LSF/100
Brand Name
CQR
Manufacturer
CQR Fire & Security
Manufacturer Part Number
CABS8/GY/LSF/100
Product Name
8 Core Belden Style 9538 - 100mtrs
Product Type
Control Cable

Technical Information

American Wire Gauge
24AWG
CPR Euroclass Rating
Eca
Device Supported
Alarm
Jacket Type
LSF
Shielding
Yes

Lock

Cable Length
100 m
Cable Length (mm)
100000

Physical Characteristics

Colour
Grey
Insulation Material
PVC

Miscellaneous

Features
Halogen Free
