General Information

ADI Part Number

311322801

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2955G0-ISU(1.05mm)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2955G0-ISU

Product Name

5MP Fixed Fisheye Network Camera

Product Series

EasyIP 3.0

Product Type

Network Camera

Weight

320 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.25

Maximum Frame Rate

30 fps

Minimum Focal Length

1.05mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264+, H.264B, H.264H, H.264M, H.265, H.265+, H.265M, MJPEG

Video Resolution

2560 x 1440

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

8 m

Certifications

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2560 x 1920

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-10°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.017 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.05mm

Lens Included

Yes

Maximum Focal Length

1.05 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Depth

41.2 mm

Form Factor

Fisheye

Power Description

Input Voltage

12V DC

Product Information

Diameter

119.9 mm

Mount Type

Ceiling Mount, Table Mount, Wall Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

2-Year

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Motion Detection, Password Protection, Region of Interest, Tampering Alarm, Wide Dynamic Range

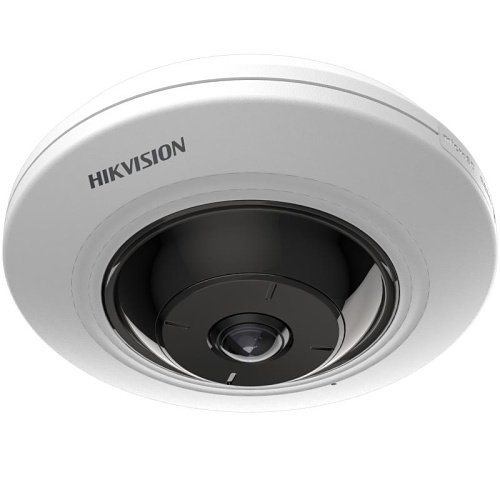

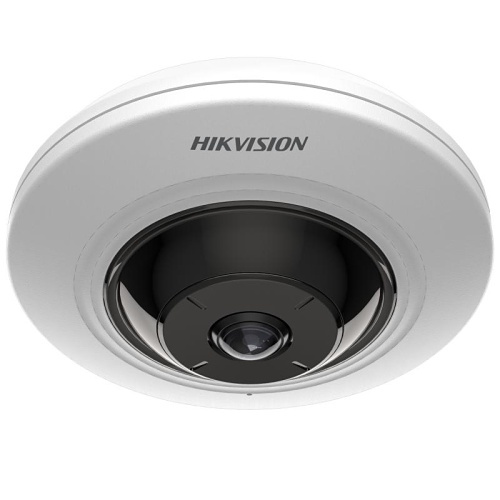

Hikvision DS-2CD2955G0-ISU(1.05MM) Pro Series 5MP Fixed Fisheye IP Camera, 1.05 mm Fixed Lens, WDR
