General Information

ADI Part Number

02858-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02858-001

Product Model

P1265 Mk II

Product Name

AXIS P1265 Mk II

Product Series

P12

Product Type

Fixed cameras

weight

75 g

Technical Information

Connectivity Technology

Wired

Field of View

Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.5

Maximum Frame Rate

30 fps

Minimum Focal Length

3.7mm

Video Formats

H.264, H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.265, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP3X

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-20°C

Operating Humidity

0.85

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.2 lux

Shortest Shutter Speed

1/16500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.7mm

Lens Included

Yes

Maximum Focal Length

3.70 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Material

Plastic, Steel

Product Information

Mount Type

M12

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Country of Origin

TH

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X

Features

AI Analytics, HTTPS Encryption, Human Detection, Mirror, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Vehicle Detection, White Balance, Wide Dynamic Range

Indoor/Outdoor

Indoor, Outdoor

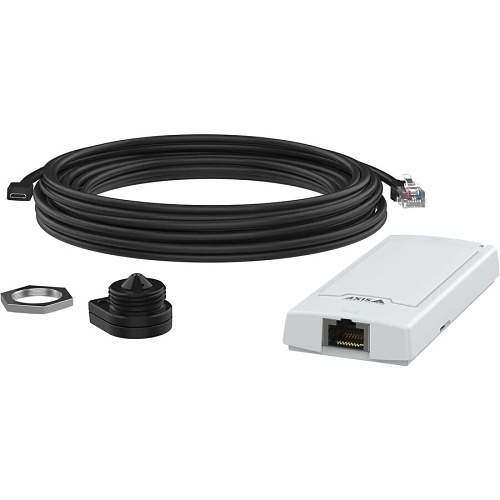

Package Contents

P1265 Mk II Modular Pinhole Camera
Installation Guide
Owner Authentication Key Main Unit
Sensor Unit
8 m (26 ft) Black Cable
1 x Locking Nut

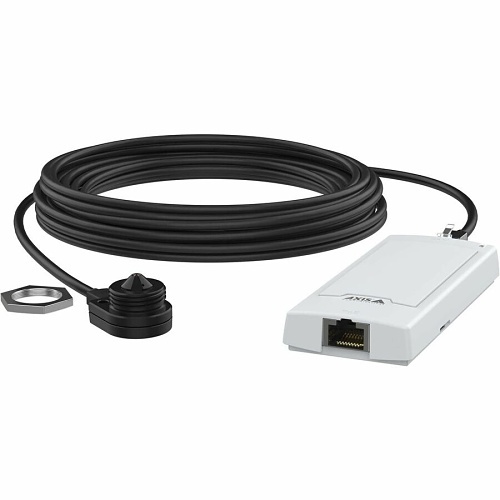

AXIS P1265 Mk II Modular Pinhole Camera
