General Information

ADI Part Number

02450-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02450-001

Product Line

Panoramic

Product Model

P3827-PVE

Product Name

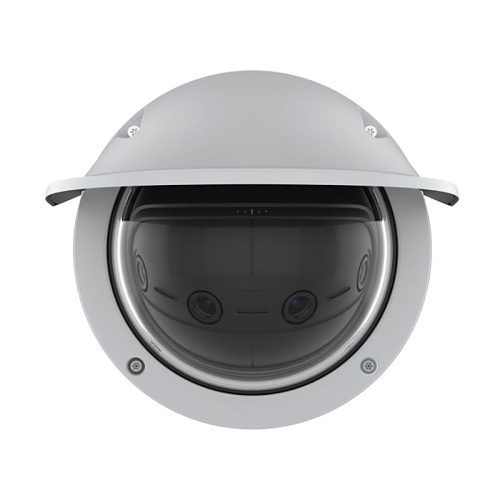

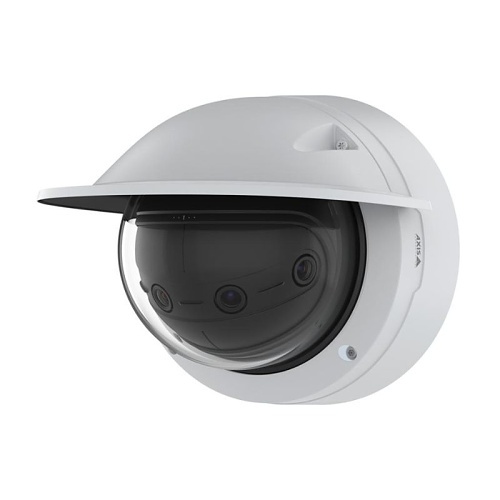

AXIS P3827-PVE

Product Type

Fixed dome cameras

Weight

2.30 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

7MP

Field of View

Horizontal, Vertical

Lens Type

Fixed

Maximum Aperture

f/2.0

Maximum Frame Rate

30 fps

Minimum Focal Length

3.3mm

Night Vision

Yes

Video Formats

H.264, H.265, MJPEG, MPEG-4

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

3712 x 1856

Number of Sensors

4

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-40°C

Operating Humidity

1

Exposure

Longest Shutter Speed

1.5 Second

Minimum Illumination

0.05 Lux

Shortest Shutter Speed

1/31500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.3mm

Lens Included

Yes

Maximum Focal Length

3.30 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

Black, White

Durability

Vandal Resistant

Form Factor

Dome

Height

169 mm

Power Description

Input Voltage

12V DC

Product Information

Diameter

195 mm

Mount Type

Bracket Mount, Ceiling Mount, Conduit Mount, Junction Box Mount, Wall Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Country of Origin

MX

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

2D Noise Reduction, 3D Noise Reduction, Audio Detection, Auto Gain Control, Motion Detection, Multi-view Stream, Noise Detection, PTZ, Tampering Alarm, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

AXIS P3827-PVE P38 Series, 7MP Panoramic Camera
