General Information

ADI Part Number

02374-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02374-001

Product Model

M3086-V

Product Name

AXIS M3086-V

Product Series

M30

Product Type

Fixed dome cameras

weight

150 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.1

Maximum Frame Rate

30 fps

Minimum Focal Length

2.4mm

Night Vision

Yes

Video Formats

H.264, MJPEG, MPEG-4

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP42

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2688 x 1512

Environmental Conditions

Maximum Operating Temperature

45°C

Minimum Operating Temperature

0°C

Operating Humidity

0.85

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.03 lux

Shortest Shutter Speed

1/38500 Second

Interfaces/Ports

HDMI

Yes

Network (RJ-45)

Yes

Lens

Focal Length

2.4mm

Lens Included

Yes

Maximum Focal Length

2.40 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Depth

11 cm

Durability

Vandal Resistant

Form Factor

Mini Dome

Height

56 mm

Width

12 cm

Product Information

Diameter

101 mm

Mount Type

Ceiling Mount, Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Country of Origin

MX

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP42, IEC/EN 62262 IK08

Features

Built-in Microphone, Cross Line Detection, Day/Night, HTTPS Encryption, Human Detection, Multi-view Stream, Password Protection, Removable IR Cut-off Filter, Vehicle Detection, Wide Dynamic Range

Impact Protection Rating

IK08

Indoor/Outdoor

Indoor

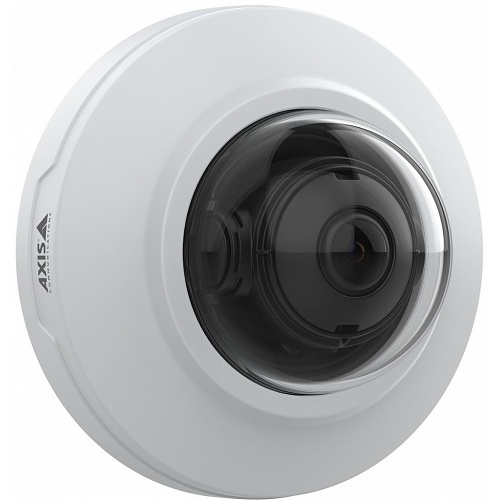

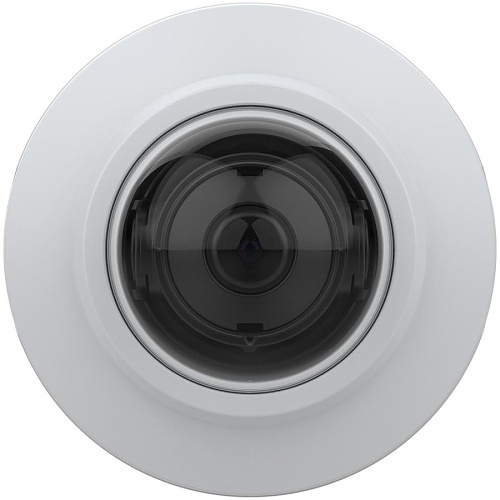

AXIS M3086-V M30 Series, 4MP Zipstream Vandal Resistant IP Mini Dome Camera, 2.4mm Fixed Lens, IP42
