General Information

ADI Part Number

02636-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02636-001

Product Model

M4327-P

Product Name

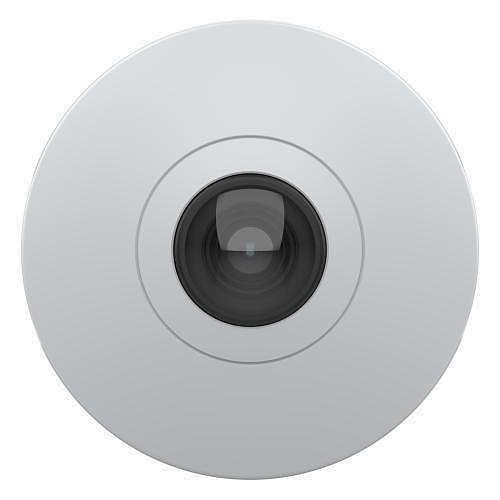

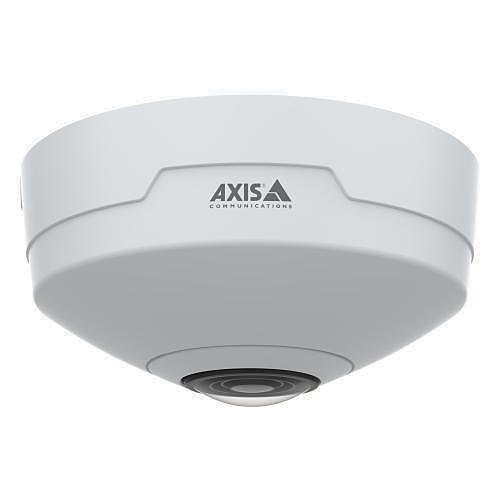

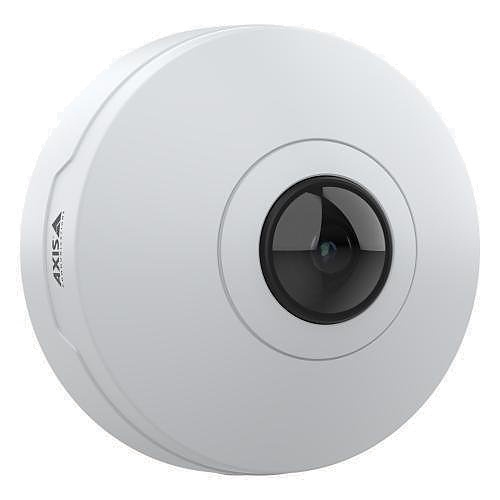

M4327-P Panoramic Camera

Product Series

M43

Product Type

Panoramic Cameras

weight

300 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

Horizontal: 182°, Vertical: 182°

Lens Type

Fixed

Maximum Aperture

f/2.2

Maximum Frame Rate

60 fps

Minimum Focal Length

1.1mm

Video Formats

H.264, H.264B, H.264B (MPEG-4 Part 10/AVC), H.264H, H.264H (MPEG-4 Part 10/AVC), H.264M, H.264M (MPEG-4 Part 10/AVC), H.265, H.265 (MPEG-H Part 2/HEVC), Motion JPEG, Zipstream

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

RGB CMOS

Certifications

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2560 x 1920

Environmental Conditions

Maximum Operating Temperature

40°C

Minimum Operating Temperature

0°C

Operating Humidity

85%

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.16 lux|0.03 lux

Shortest Shutter Speed

1/33500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.1 mm

Lens Included

Yes

Maximum Focal Length

1.10 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Form Factor

Fisheye

Height

51 mm

Product Information

Diameter

101 mm

Mount Type

Gang Box Mount, Junction Box Mount, Tripod Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

EU RoHS, REACH, RoHS

Environmentally Friendly

Yes

Features

2D Noise Reduction, 3D Digital Noise Reduction, Day/Night, Human Detection, Mirror, Noise Reduction, Privacy Masking, Vehicle Detection, Video Management System, White Balance, Wide Dynamic Range

Indoor/Outdoor

Indoor

Package Contents

M4327-P Panoramic Camera
Installation guide
Owner authentication key

AXIS M4327-P M43 Series, 6MP IP Panoramic Camera, 1.1mm Fixed Lens, White
