General Information

ADI Part Number

02511-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02511-001

Product Model

M4318-PLVE

Product Name

AXIS M4318-PLVE

Product Series

M43

Product Type

Fixed dome cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

12MP

Field of View

Horizontal, Vertical

Lens Type

Fixed

Maximum Frame Rate

30 fps

Night Vision

Yes

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2992 x 2992

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-40°C

Exposure

Minimum Illumination

0.04 lux

Lens

Focal Length

1.2mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Depth

14.9 cm

Durability

Vandal Resistant

Form Factor

Dome

Height

7 cm

Weight

1.05kg

Width

14.9 cm

Product Information

Mount Type

Ceiling Mount, Wall Mount

Warranty

Limited Warranty

3-Year

Miscellaneous

Country of Origin

MX

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, ISO 21207 (Method B), ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Day/Night, PTZ

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

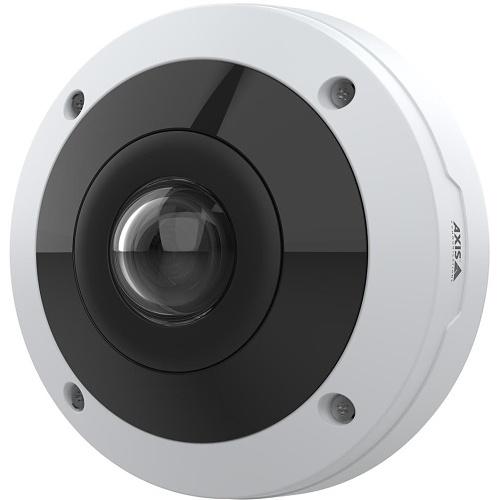

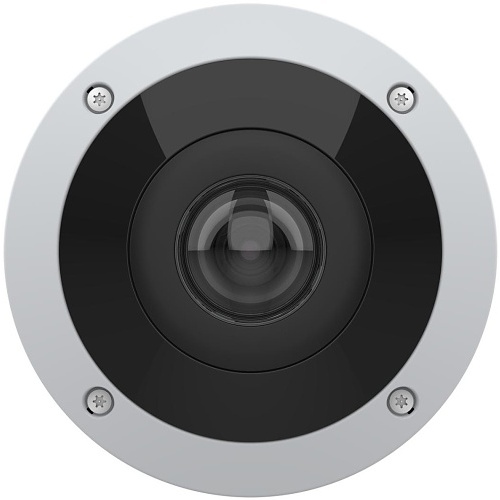

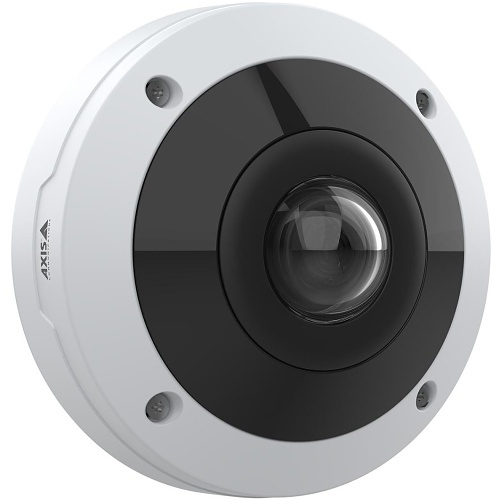

AXIS M4318-PLVE M43 Series, 12MP Outdoor Panoramic IP Mini Dome Camera
