General Information

ADI Part Number

02510-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02510-001

Product Model

M4317-PLVE

Product Name

AXIS M4317-PLVE

Product Series

M43

Product Type

Fixed dome cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

Horizontal, Vertical

Lens Type

Fixed

Maximum Aperture

f/2.2

Maximum Frame Rate

60 fps

Minimum Focal Length

1.1mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.265, MPEG-4

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

20 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2160 x 2160

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-40°C

Operating Humidity

1

Exposure

Longest Shutter Speed

0.2 Second

Minimum Illumination

0.03 lux

Shortest Shutter Speed

1/33500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.1mm

Lens Included

Yes

Maximum Focal Length

1.10 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Vandal Resistant

Form Factor

Dome

Height

70 mm

Weight

860g

Product Information

Diameter

149 mm

Mount Type

Bracket Mount, Gang Box Mount, Junction Box Mount, Screw Mount, Tripod Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Country of Origin

MX

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, ISO 21207 (Method B), ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Built-in IR LED, Day/Night, Human Detection, Motion Detection, Noise Reduction, PTZ, Tampering Alarm, Vehicle Detection, Video Management System, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

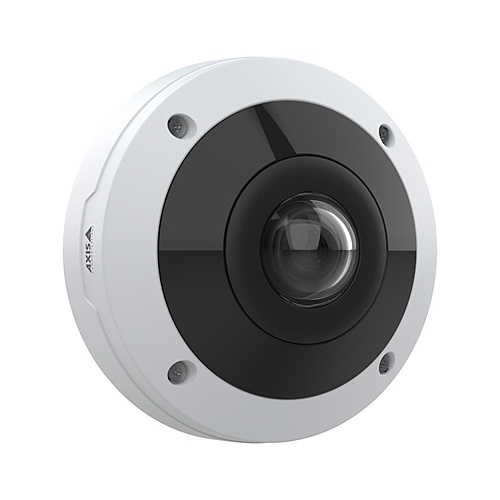

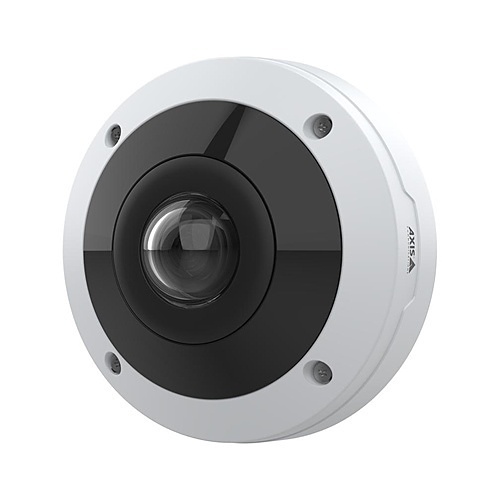

AXIS M4317-PLVE 6 MP Panoramic Dome Camera with 360° Coverage and Deep Learning
