General Information

ADI Part Number

327800904

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CE70KF0T-LMFS(3.6mm)

Product Line

ColorVu

Product Model

DS-2CE70KF0T-LMFS

Product Name

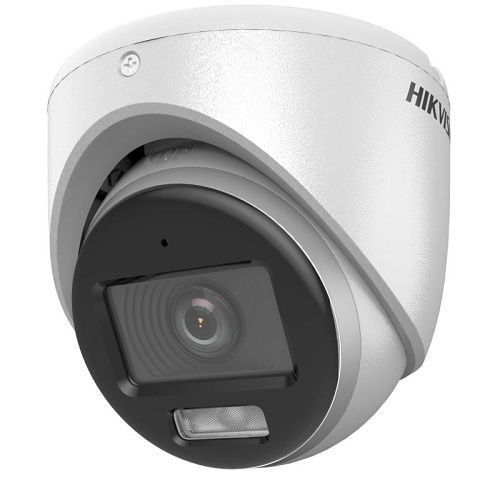

3K ColorVu Smart hybrid light Fixed Turret Camera

Product Type

Surveillance Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Minimum Focal Length

3.6mm

Night Vision

Yes

Night Vision Type

Colour, Infrared

Video Resolution

1280 x 720

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

20 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2960 x 1665

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.9

Exposure

Longest Shutter Speed

1/25 Second

Minimum Illumination

0.001 Lux at(F1.0, AGC ON), 0 Lux with white light

Shortest Shutter Speed

1/50000 Second

Lens

Focal Length

3.6mm

Lens Included

Yes

Maximum Focal Length

3.60 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Turret

Weight

330g

Power Description

Input Voltage

12V DC

Power Source

DC

Product Information

Diameter

85.1 mm

Mount Type

Ceiling Mount, Corner Mount, Wall Mount

Storage

Recording Formats

3K

Video

Analog Video Signal Format

AHD, CVBS, CVI, TVI

Warranty

Limited Warranty

2-Year

Miscellaneous

Features

2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Noise Reduction, Smart IR, White Balance, Wide Dynamic Range

Hikvision DS-2CE70KF0T-LMFS 3K ColorVu Audio Turret Camera, 3.6mm Fixed Lens
