General Information

ADI Part Number

MVA

Brand Name

CDVI

Manufacturer

CDVI Group

Manufacturer Part Number

MVA

Packaged Quantity

1

Product Line

Diax

Product Model

MVA

Product Name

Motorised Electric Dead-Bolt

Product Series

MV

Product Type

Electric Deadbolt

Technical Information

Maximum Timer Duration

8-Second

Certifications

CE Marking

Yes

Ingress Protection Rating

IP57

RoHS Compliant

Compliant

Lock

Number of Keys Included

3

Physical Characteristics

Application/Usage

Access Control System, Commercial, Door, Public Building, Wooden Door

Color

Silver

Depth

42 mm

Form Factor

Surface Mount

Height

130 mm

Material

Nylon

Weight

1.15kg

Width

100 mm

Power Description

Input Voltage

12V DC, 18V DC

Product Information

Holding Force

1500kg

Length

100 mm

Lock Type

Motorized Door

Mount Type

Surface Mount

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

CE, RoHS

Environmentally Friendly

Yes

Features

Electronic deadlocking, Heavy-duty, Non-handed, Nylon gears, Varnish coating for external use

Indoor/Outdoor

Indoor, Outdoor

Package Contents

Motorised Electric Dead-Bolt
3 x Keys

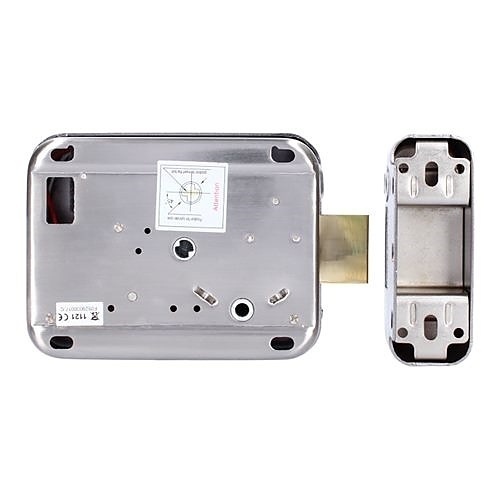

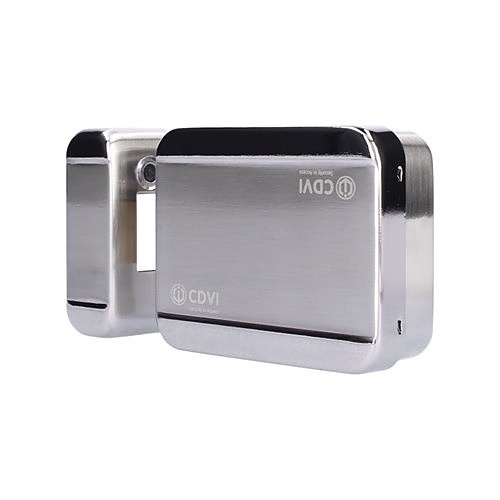

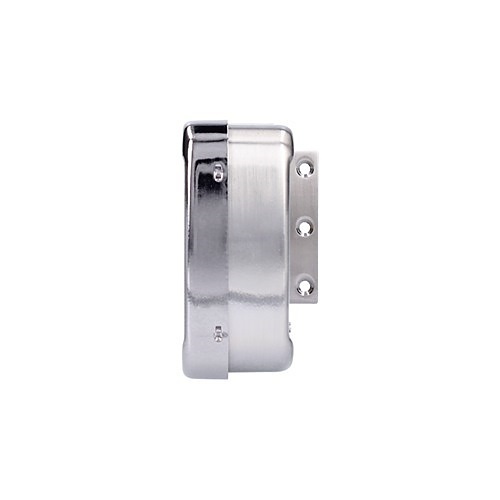

CDVI MVA Motorised Electric Deadbolt
